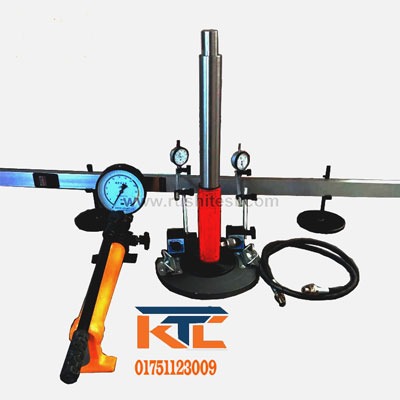

plate load test

plate load test 50kn

Ktcdhaka of plate load test:

We always try to sell civil technical ktcdhaka of plate load test product and always flexible with customer we try to do business nicely.

What is a Plate Load Test?

A is an in-situ Plate load test conducted to determine the ultimate bearing capacity of the soil and the probable settlement under a given load. It is one of the most reliable methods for evaluating soil strength before constructing a foundation.

Purpose of the Test

• Bearing Capacity: To find out how much load the soil can safely support per unit area.

• Settlement Analysis: To measure how much the soil compresses or sinks under specific loads.

• Foundation Design: To help engineers decide whether a shallow foundation (like isolated or mat footings) or a deep foundation (like piles) is required.

How is it Performed? (Procedure)

The test involves placing a steel plate on the soil at the proposed foundation level and applying incremental loads. Here are the step-by-step details:

• Excavation: A pit is dug down to the exact depth where the actual foundation is planned to be laid.

• Placing the Plate: A heavy steel plate (typically circular or square, ranging from 30 cm to 75 cm in diameter) is placed flat and level on the prepared soil surface.

• Loading Setup: A hydraulic jack is placed on top of the plate, reacting against a heavy loaded platform or reaction beam (often loaded with sandbags or concrete blocks).

• Applying Load: Load is applied in gradual increments (stages).

• Measuring Settlement: Dial gauges are attached to measure the downward movement (settlement) of the plate at each load increment.

• Completion: The test continues until the soil fails, or until the load reaches a pre-determined maximum limit (usually 1.5 to 2 times the estimated safe plate load test capacity).

Limitations of the Test

• Depth Limitation: It only tests the soil characteristics up to a limited depth (usually about twice the width of the plate). It does not reflect deep soil strata conditions.

• Size Effect: The test plate is much smaller than an actual building foundation, which can sometimes lead to scale-effect differences in granular soils.
