Specific gravity setting tools:

The Specific gravity setting tools is  instruments measure the relative density and water absorption of soil, aggregates, and cement:

• Pycnometer Bottle: A 1-liter glass jar with a conical brass cap, used primarily for coarse-grained soils and fine aggregates.

• Density Bottle (50 ml): A small stoppered glass bottle used for fine-grained soils (clay and silt).

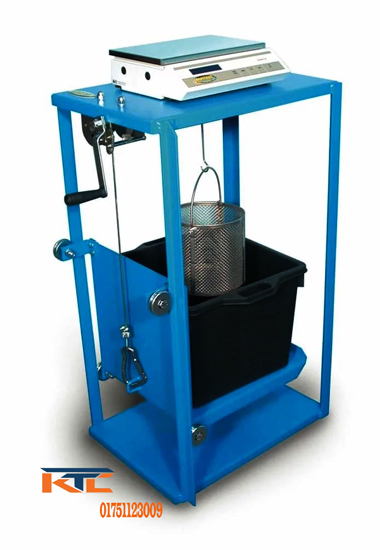

• Frame & Wire Basket: A buoyancy balance apparatus with a wire mesh basket and water tank, used for coarse aggregates (gravel/stone chips) to measure specific gravity and water absorption according to IS/ASTM standards.

• Le Chatelier Flask: A specialized glass flask used with kerosene to determine the specific gravity of hydraulic cement (standard value $\approx 3.15$).

• Hydrometer: Used in sedimentation analysis to measure the specific gravity of soil suspensions for particle size distribution.

2. Setting Time Testing Tools

These tools monitor the hardening rates of cement paste and concrete:

• Vicat Apparatus: The standard instrument used to measure the normal consistency, initial setting time, and final setting time of cement paste.

  • Initial Setting Needle: A $1\text{ mm}^2$ square cross-section needle used to find when the paste begins to lose plasticity (minimum 30 minutes for OPC).

  • Final Setting Needle: A needle fitted with a $5\text{ mm}$ circular annular attachment to mark the complete loss of plasticity (maximum 600 minutes for OPC).

  • Vicat Mold: A split mold ($80\text{ mm}$ diameter, $40\text{ mm}$ height) that holds the cement paste during testing.

• Concrete Mortar: A spring-loaded needle apparatus used to determine the initial and final setting times of concrete mixtures by measuring penetration resistance.specific gravity setting tools:-
