poket penetrometer 2026

Ktcdhaka of poket penetrometer:

We always try to sell civil technical ktcdhaka of poket product and always flexible with customer we try to do business nicely.

Any penetrometer (India)

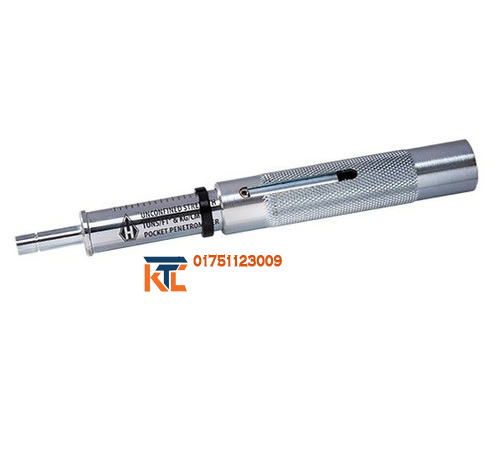

A pocket penetrometer is a compact, lightweight, hand-held tool used by geotechnical engineers, field technicians, and construction inspectors to measure the unconfined compressive strength ($q_u$) and estimated shear strength of cohesive soils (like clay and silt).

Key Breakdown of the Pocket Penetrometer

1. What is it poket penetrometer?

It is a poket penetrometee spring-loaded direct-reading instrument equipped with a calibrated loading piston ($0.25\text{ inches}$ or $6.4\text{ mm}$ diameter tip) and a friction ring. When pressed into cohesive soil up to the etched calibration mark ($0.25\text{ inches}$ deep), the internal spring compresses, moving the indicator ring along a scale calibrated directly in tons per square foot ($\text{tsf}$) or kilograms per square centimeter ($\text{kg/cm}^2$).

When is it used poket penetrometer?

• On-site Soil Surveys: The poket penetrometer Immediately during site exploration or excavation before laboratory results are available.

• Trench Inspection: To classify soil stability quickly and assess compliance with safety regulations (e.g., OSHA soil classification: Type A, B, or C).

• Core Sampling Evaluation: Right after obtaining soil cores or split-spoon samples in the field to check consistency without damaging the main core.

Where is it used poket penetrometer?

• Excavation Sites & Trenches: Testing trench walls to prevent dangerous cave-ins.

• Foundation Footings: Checking bottom soil layer consistency before pouring concrete.

• Geotechnical Laboratories: For quick preliminary spot-checks on undisturbed soil samples.

• Agricultural Fields: Testing surface compaction in topsoil layer studies.

Why is it used poket penetrometer?

• Instant Results: The poket penetrometer Delivers soil strength estimation in under 10 seconds.

• Portability & Ease: Fits in a pocket, requires no power supply or set-up time.

• Cost Efficiency: Reduces unnecessary lab testing for routine consistency checks.

• Safety Verification: The poket penetrometerProvides immediate safety verification for trenching personnel.

Limitations & Difficulties poket penetromete:-

While extremely practical, poket penetrometer come with notable engineering limitations:

• Inapplicable for Non-Cohesive Soils: Cannot be used on dry sand, gravel, or rocky soils, as the particles slip away rather than resisting compression. poket penetrometer.

• Human Operator Bias: Reading accuracy depends heavily on applying steady, uniform pressure straight down without tilting or jerking.

• Indication Tool Only: It provides an estimated approximation of soil strength; it does not replace formal ASTM laboratory triaxial or unconfined compression testing for design engineering calculations.

• Disturbed Surface Sensitivity: Surface drying poket penetrometer or local disturbance on the sample face can alter readings significantly.

Essential Value in Geotechnical Work

The poket penetrometer is an essential field index tool. In geotechnical engineering, field decisions often need to be made instantly—such as confirming foundation subgrades or ensuring worker safety in deep excavations. Having a standardized, calibrated tool to categorize soil firmness instantly reduces guesswork on-site.
