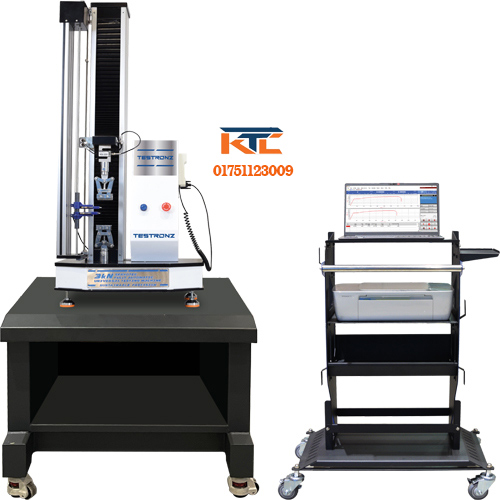

Universal testing machine, China 1000kn.

Universal testing machine:

A universal testing machine (UTM), also known as a universal tester, materials testing machine, or materials test frame, is a powerful tool used to determine the mechanical properties of materials. It can perform a wide variety of tests, including:

• Tensile tests: Measures the strength and elongation of a material when pulled apart.


  Tensile test UTM
• Compression tests: Measures the strength and deformation of a material when pushed together.


  Compression test UTM
• Bend tests: Measures the strength and deflection of a material when bent.


  Bend test UTM
• Shear tests: Measures the resistance of a material to sliding forces.


  Shear test UTM
• Peel tests: Measures the force required to separate bonded materials.


  Peel test UTM
• Fatigue tests: Measures the strength of a material under repeated loading.

UTMs come in a variety of configurations, but they all typically have the following components:

• Frame: The frame houses the machine’s components and provides support for the test specimen.
• Load frame: The load frame applies the force to the test specimen. It can be electromechanical, hydraulic, or servo-hydraulic.
• Grips: The grips hold the test specimen in place during the test.
• Crosshead: The crosshead moves up and down to apply the force to the specimen.
• Extensometer: The extensometer measures the deformation of the specimen during the test.
• Data acquisition system: The data acquisition system records the force, displacement, and other data during the test.

How to work with aUniversal testing machine:

1. Select the appropriate test: The type of test you need to perform will depend on the material you are testing and the information you need to obtain.
2. Prepare the test specimen: The test specimen must be cut to the correct size and shape and prepared according to the relevant standards.
3. Mount the specimen: The specimen is mounted in the grips of the UTM.
4. Set up the test parameters: The test parameters, such as the test speed and the data acquisition rate, are set on the control panel.
5. Run the test: The test is started, and the UTM applies the force to the specimen.
6. Analyze the data: The data from the test is analyzed to determine the mechanical properties of the material.

Calculation data:

The data from a UTM test can be used to calculate a variety of mechanical properties, such as:

• Young’s modulus: A measure of a material’s stiffness.
• Ultimate tensile strength: The maximum stress a material can withstand before it breaks.
• Yield strength: The stress at which a material begins to deform plastically.
• Elongation: The amount a material stretches before it breaks.

The specific calculations that are performed will depend on the type of test that was conducted.

I hope this gives you a good overview of universal testing machines. If you have any more questions, please feel free to ask!

Ktcdhaka in best Universal testing machine:

We always try to sell civil technical best Universal testing machine of ktcdhaka product and always flexible with customer we try to do business nicely.
