Marshal testing machine:

A Marshal testing machine Stability is a piece of equipment used in civil engineering to measure the stability and flow characteristics of bituminous paving mixtures. It is an essential tool for ensuring the quality and performance of asphalt pavements.

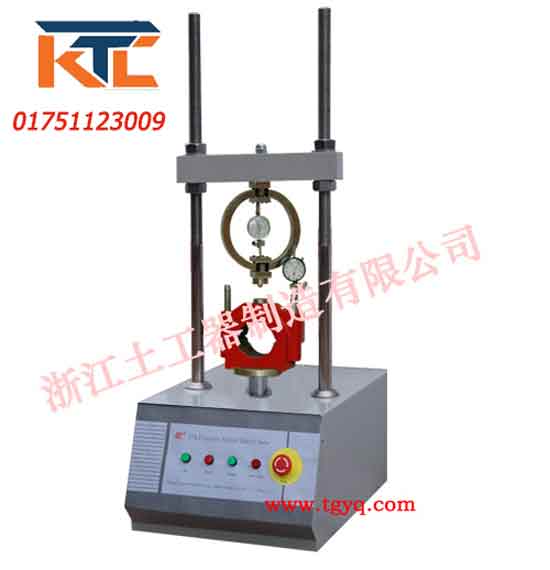

Civil engineering Marshall Stability Testing Machine

How it works :

1. Cylindrical specimens of the paving mixture are prepared in the laboratory.
2. The specimens are placed in the testing machine and loaded at a constant rate.
3. The machine measures the force required to break the specimen and the amount of displacement that occurs before the break.
4. The Marshall Stability is calculated as the maximum force divided by the area of the specimen.
5. The Flow Value is calculated as the total displacement at the break.

The results of the best Marshal testing machine are used to:

• Evaluate the quality of the paving mixture design.
• Predict the performance of the pavement in service.
• Optimize the asphalt content and aggregate gradation of the paving mixture.

Types of Marshal testing machine:

There are two main types of Marshall Testing Machines:

• Mechanical: These machines use a proving ring to measure the force and a dial gauge to measure the displacement.
• Digital: These machines use a load cell to measure the force and a linear variable differential transformer (LVDT) to measure the displacement.

Digital machines are more accurate and easier to use than mechanical machines.

Factors affecting machine:

• Asphalt content
• Aggregate gradation
• Air voids
• Compaction temperature
• Testing temperature

Any data view

Importance of Marshal testing machine:

Marshall Stability Testing is an important part of the quality control process for asphalt pavements. It helps to ensure that the pavements are strong and durable enough to withstand the loads of traffic.

Here are some additional details about Marshall Stability Testing Machines:

• The typical capacity of a Testing Machine is 50 kN (5 tons).
• The test is typically conducted at a temperature of 60°C (140°F).
• The minimum for a pavement is typically specified by the local or national transportation authority.

I hope this information is helpful. Please let me know if you have any other questions.

Here are the key mathematical calculations involved in Marshall Stability Testing:

1. Marshall Stability (MS):

• Formula: MS = P/A
• Variables:
  • P: Maximum load applied to the specimen (kN)
  • A: Cross-sectional area of the specimen (mm²)
• Units: kN/mm² or N/mm² (also commonly expressed in kg/cm²)

2. Flow Value (FV):

• Formula: FV = D
• Variable:
  • D: Total deformation of the specimen at the point of maximum load (mm)
• Units: mm

3. Bulk Specific Gravity (Gmb):

• Formula: Gmb = (A – B) / (C – D)
• Variables:
  • A: Weight of the dry specimen in air (g)
  • B: Weight of the saturated surface-dry specimen in air (g)
  • C: Weight of the saturated specimen in water (g)
  • D: Weight of the submerged specimen in water (g)
• Units: Dimensionless

4. Air Voids (AV):

• Formula: AV = (1 – Gmb / Gmm) * 100
• Variables:
  • Gmb: Bulk specific gravity
  • Gmm: Maximum theoretical specific gravity
• Units: Percentage (%)

5. Voids in Mineral Aggregate (VMA):

• Formula: VMA = 100 – (Ps * Gsb / Gmb)
• Variables:
  • Ps: Percentage of aggregate by weight
  • Gsb: Bulk specific gravity of the aggregate
  • Gmb: Bulk specific gravity of the mix
• Units: Percentage (%)

6. Voids Filled with Asphalt (VFA):

• Formula: VFA = (VMA – AV) / VMA * 100
• Units: Percentage (%)

7. Marshall Quotient (MQ):

• Formula: MQ = MS / FV
• Units: Dimensionless

Additional considerations for accurate calculations:

• Temperature correction: If the test temperature differs from 60°C, a correction factor may be applied to the Marshall Stability value.
• Machine calibration: The Marshall Stability Testing Machine should be regularly calibrated to ensure accurate results.
• Specimen preparation: Proper specimen preparation is essential for reliable test results.

Interpreting the results:

• The optimal values for Marshall Stability, Flow Value, and other parameters will depend on the specific requirements of the pavement design and local standards.
• Experienced engineers use these calculations and their expertise to evaluate the suitability of the asphalt mix for the intended application.

Ktcdhaka in best marshal testing machine:

We always try to sell civil technical best product and always flexible with customer we try to do business nicely marshal testing machine of ktcdhaka.
