Rebound test hammer (China )

Rebound test hammer:-

Here’s a comprehensive response on Rebound test hammers, incorporating images:

Introduction

A rebound test hammer, also known as a Schmidt hammer, Swiss hammer, or concrete test hammer, is a portable, non-destructive testing tool used to assess the in-place compressive strength of concrete.

• What is a rebound hammer?
  • It’s a non-destructive testing device used to estimate the compressive strength of concrete and other solid materials.
  • It works by measuring the rebound of a spring-loaded mass after striking the surface of the material.

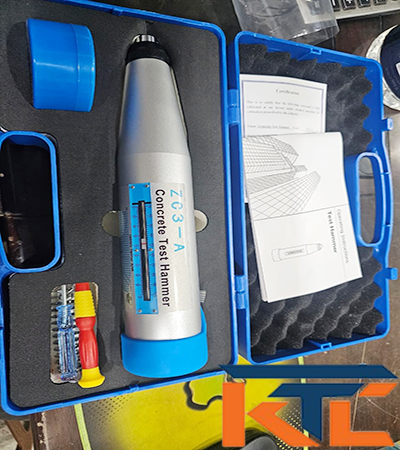

rebound hammer

Mathematics and Data

• Rebound number (R): The key measurement, expressed as a percentage of the initial impact.
• Correlation curve: Used to relate R to compressive strength (f’c).
  • Established by testing known strength concrete blocks.
  • Varies based on material type and hammer model.
• Typical formula: f’c = aR + b (where a and b are constants).

Data collection:

1. Hold the hammer perpendicular to the surface.
2. Press it firmly to ensure full contact.
3. Release the plunger, allowing the mass to strike.
4. Read the rebound number on the indicator.
5. Repeat the process at multiple locations and average the results.

Any best rebound hammer data link website;

Conclusions

• Advantages:
  • Simple, quick, and portable.
  • Non-destructive, preserving material integrity.
  • Versatile, applicable to various materials.
• Limitations:
  • Affected by surface conditions (moisture, roughness).
  • Limited accuracy compared to destructive testing.
  • Requires calibration for specific materials.

Best practices:

• Calibrate the hammer regularly.
• Test on a clean, smooth surface.
• Take multiple readings and average them.
• Use appropriate correlation curves.
• Consider material factors (age, moisture, etc.).
• Supplement with other testing methods if needed.

Here’s a comprehensive overview of rebound test hammer calculation data, incorporating essential details:

Key Concepts:

• Rebound Number (RN): The numerical value representing the extent to which the hammer’s mass rebounds from the concrete surface. Higher RNs indicate lower compressive strength.

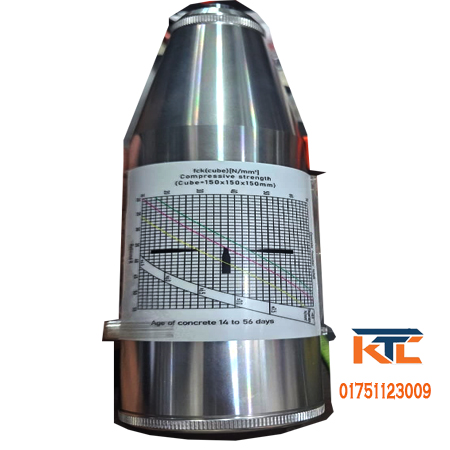

• Correlation Curve: A graph that establishes the relationship between RNs and concrete compressive strength for a specific hammer type and concrete mix. It’s crucial for accurate strength estimation.

Calculation Steps:

1. Obtain RNs:

   • Take multiple readings (typically 10) at each test location.
   • Discard outliers (values differing by more than 6 units from the average).
   • Calculate the average RN for the location.

2. Consult Correlation Curve:

   • Locate the average RN on the curve.
   • Read the corresponding compressive strength value.

Example (using a hypothetical correlation curve):

• Average RN = 35
• Estimated compressive strength from curve = 25 MPa

Additional Considerations:

• Hammer Calibration: Verify accurate readings by regularly calibrating the hammer against a standard anvil.
• Concrete Factors: Strength estimation is influenced by concrete mix proportions, age, moisture content, surface conditions, and carbonation.
• Standards: Adhere to applicable standards (e.g., ASTM C805, BS EN 12504-2, IS 13311(2)-1992) for testing and interpretation.

Important Notes:

• Rebound hammer tests provide estimates of compressive strength, not definitive values.
• Core testing is often recommended for more precise strength determination.
• Exercise caution when interpreting results, considering influencing factors and potential limitations.

For Bangladesh-specific guidance, refer to the relevant national standards and guidelines.

Ktcdhaka in Rebound hammer test:

We always try to sell civil technical best product and always flexible with customer we try to do business nicely Rebound hammer tests.
