Elongation gauge:
An elongation gauge is a specialized tool used in the construction and engineering industry to measure the best elongation gauge of aggregate particles. The elongation index is a measure of the percentage of elongated particles present in a sample of aggregate, which is important for determining the suitability of the aggregate for various applications.
What is an best Elongation gauge?

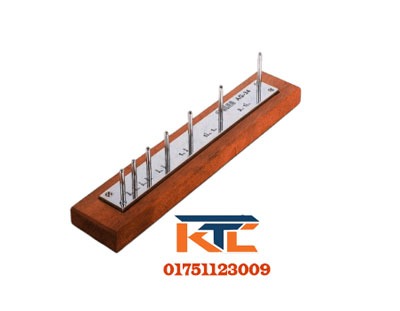

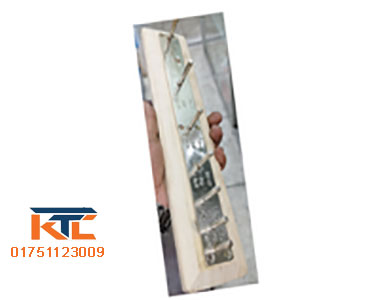

An elongation gauge typically consists of a metal plate with a series of parallel slots or holes of varying widths. The width of each slot or hole corresponds to a specific elongation ratio, which is the ratio of the longest dimension of a particle to its average dimension.
How does it work of best elongation gauge?
To use an elongation gauge, a sample of aggregate is first sieved into different size fractions. Each size fraction is then poured onto the gauge. Elongated particles will be retained in the slots or holes that are smaller than their longest dimension, while more cubical particles will pass through. The weight of the particles retained in each slot is then measured and expressed as a percentage of the total weight of the sample. This percentage is the elongation index for that particular size fraction.
Elongation gauge of Applications:
- Durability: Elongated particles tend to be weaker than cubical particles and are more prone to breakage under stress. This can lead to problems such as cracking and potholing in pavements and concrete structures.
- Workability: Elongated particles can make concrete mixes less workable and more difficult to place and compact.
- Packing density: Elongated particles can leave voids in the aggregate, which can reduce the strength and durability of the final product.
Therefore, specifications for various construction materials often place limits on the elongation index of the aggregates that can be used.
Types of elongation gauges:
There are two main types of elongation gauges:
- Slotted gauges: These gauges have slots of varying widths instead of holes. They are simpler and more robust than pin gauges, but they may not be as accurate for measuring the elongation of very small particles.
- Pin gauges: These gauges have pins of varying diameters arranged in pairs. Particles are placed between the pins, and only those particles that are longer than the gap between the pins will be retained. Pin gauges are more accurate than slotted gauges, but they are also more expensive and delicate.
Standards and Specifications:
The testing procedures and acceptable elongation index values for aggregates are typically specified by national or international standards organizations, such as ASTM International (American Society for Testing and Materials) and BS EN (British Standards Institution).
visit of the Elongation gauge other website link.
Ktcdhaka in elongation gauge : We always try to sell civil technical best product of elongation gauge of ktcdhaka and always flexible with customer we try to do business nicely.
Conclusion of best Elongation gauge :
The best Elongation gauge is a valuable tool for ensuring the quality of aggregate materials used in construction. By measuring the elongation index, engineers and contractors can select aggregates that are strong, durable, and workable, leading to better performing and longer-lasting structures.
I hope this information provides you with a good overview of elongation gauges. If you have any further questions, please feel free to ask.
I understand that the Length (Elongation) Gauge is a tool used to assess the elongation of aggregate particles, specifically those with a length exceeding 1.8 times the midsize of their respective sieve fraction. It’s interesting to know that the aggregate is separated into six different fractions before individual examination.
Is there anything specific you’d like to know about the Length (Elongation) Gauge or the elongation index of aggregates? I can provide further details on the process, applications, or relevant standards involved.
