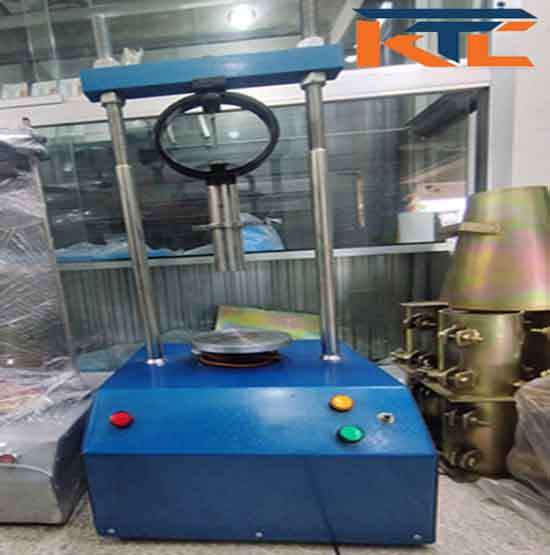

cbr machine (bd) with one proving ring 50 kn

Cbr machine:

The California Bearing Ratio (Cbr machine) test is a crucial procedure for determining the load-bearing capacity of soils, typically used in the design and construction of roads, pavements, and airfield runways. CBR testing machines come in various configurations to cater to laboratory and field testing needs.

Laboratory Cbr Machine:

These machines are typically housed in a controlled environment and offer precise testing conditions. Here’s a breakdown of their key components:

• Load Frame: The core of the machine, it applies a controlled load to the soil sample through a piston or screw mechanism. Load frames can have capacities ranging from 10kN to 50kN or higher, depending on the testing requirements.


  Laboratory CBR Test Machine Load Frame
• CBR Mold and Penetration Piston: The soil sample is prepared and compacted within a cylindrical mold. The penetration piston transmits the load from the frame to the sample.


  Laboratory CBR Test Machine CBR Mold and Penetration Piston
• Dial Gauge: Measures the penetration depth of the piston into the soil sample with high accuracy.


  Laboratory CBR Test Machine Dial Gauge
• Data Acquisition System: Modern machines often come equipped with data acquisition systems that record load and penetration depth data throughout the test. This allows for easy analysis and report generation.

Multiplex CBR Machines:

These machines enable simultaneous testing of multiple soil samples, improving efficiency and throughput. They’re ideal for laboratories with high testing volumes.

• Multi-station Load Frame: This frame has multiple loading points, allowing for independent testing of several samples simultaneously.


  Multiplex CBR Machine Multistation Load Frame
• Individual CBR Fixtures: Each sample is placed in a dedicated CBR mold mounted on the load frame. The fixtures ensure proper alignment and consistent testing conditions.

Datalogging and Outputs:

Datalogging systems in modern Cbr machines capture essential data points like load, penetration depth, and test duration. This data can be exported to software for analysis and presentation in reports. Outputs typically include:

• CBR values at specific penetration depths (e.g., 2.5mm and 5mm)
• Stress-strain curves
• Graphical representation of test results

Field best Cbr machine Testing Systems:

For in-situ testing, portable CBR equipment is available. These systems typically consist of:

• Penetration Jack: A hydraulic jack applies a controlled load to the soil through a piston similar to the laboratory setup.



  Field CBR machine System Penetration Jack

• Load Ring: Measures the applied load with high accuracy.



  Field best Cbr machine Testing System Load Ring

• Surcharge Plate: Distributes the load over a larger area, mimicking actual pavement loading conditions.

• Penetration Piston and Dial Gauge: Similar to the laboratory setup, these components measure the penetration depth of the piston into the soil.

Choosing the right Cbr test machine depends on your specific needs and testing volume. Consider factors like budget, testing frequency, sample size, and desired level of automation. Consulting with a geotechnical engineer or equipment supplier can help you make an informed decision.

I hope this information provides a comprehensive overview of California Bearing Ratio test machines. Please let me know if you have any further questions.

Ktcdhaka of Cbr machine: We always try to sell civil technical best Cbr Machine  product and always flexible with customer we try to do business nicely.
